Big Power UK Perkins Diesel Generator Set 2250kva 1800kw With Engine 4016-61TRG3

Product Categories
Xiamen Ai Power Technology Co., Ltd.
Contact Now

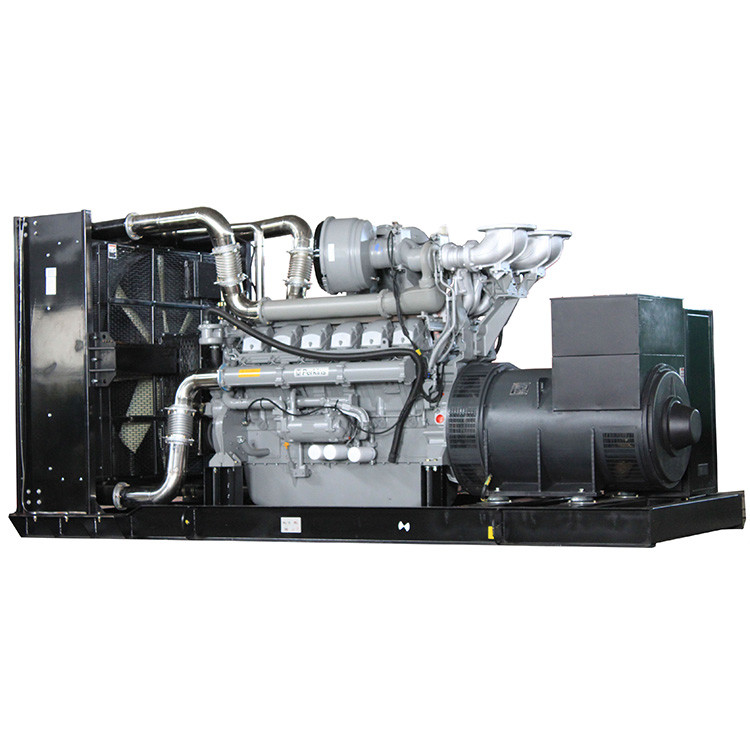

Big Power UK Perkins Diesel Generator Set 2250kva 1800kw With Engine 4016-61TRG3

  • 1
  • 2

Brand Name : Ai Power

Model Number : A2250

Certification : CE, ISO9001, SONCAP

Place of Origin : CHINA

MOQ : 1 unit

Price : USD261000

Payment Terms : L/C, T/T, Western Union,

Supply Ability : 10 units per month

Delivery Time : 30 days

Packaging Details : Foam and plastic film package

Power : 1800kw/2250kva

Engine Model : With UK Perkins 4016-61TRG3

Frequency : 50HZ

Speed : 1500rpm

Alternator : Leroysomer, Stamford

Control Panel : Deepsea 7320, Comap AMF 25

Warranty : 12 Months/1000 Hours Which Ever Comes First

Cooling method : Water tank and fan,Water-cooled

Contact Now

High Quality Big Power UK Perkins Diesel Generator 2250kva 1800kw Generator Set With Engine 4016-61TRG3

Product Description

Big Power UK Perkins Diesel Generator Set 2250kva 1800kw With Engine 4016-61TRG3

High Quality Big Power Diesel Generator 2250kva 1800kw Generator Set With UK Engine 4016-61TRG3

Engine
GENERAL ENGINE DATA
Engine manufacture
Perkins Engines Company Limited
Engine brand
Perkins
Engine model
4016-61TRG3
Engine speed (rpm)
1500
Prime power
Gross engine power (kWb)
1975
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)
1800
Cylinders
16-cylinder, 60° Vee
Cycle
4 stroke
Induction system
Turbocharged
Combustion system
Direct injection
Compression ratio
13:1 nominal
Bore * Stroke (mm)
160 * 190
Cubic capacity (Litre)
61.123
FUEL SYSTEM
Injection system
Direct
Governor type
electronic
Fuel Consumption (litre/hour)
Standby
529
Prime
470
Baseload
371
75% output power
344
50% output power
234
25% output power
126
COOLING SYSTEM
Total coolant capacity: Jacket Water (Litres)
engine only
95
Temperate cooling (engine and radiator)
210
Tropical cooling (engine and radiator)
215
Maximum top tank temperature (°C)
98
Thermostat operating range (°C)
71-85
Shutdown switch setting (°C)
101
LUBRICATION SYSTEM
Maximum sump capacity (liter)
213
Minimum sump capacity (liter)
157
Oil temperature at normal operating conditions (°C)
95
Oil temperature (in rail)-Max. continuous operations (°C)
105
Oil pressure at rated speed (kPa)
400
Oil pressure Minimum @80°C (kPa)
340
Shutdown switch - pressure setting (kPa)
193 (falling)
INDUCTION SYSTEM
Maximum air intake restriction of engine (kPa)
Clean filter
1.24
Dirty filter
3.71
Combustion air flow(standby/prime power) (m3/min)
165 / 155
EXHAUST SYSTEM
Back pressure for total system (kPa)
3.91-4
Exhaust gas temp. after turbo(standby/prime power)(°C)
425 / 400
Exhaust gas flow (standby/prime power) (m3/min
400
ELECTRICAL SYSTEM
Alternator voltage (volts)
24
Alternator output (amps)
55
Stater motor type (volts)
24
Starter motor power (amps)
16.4
ALTERNATOR
Alternator manufacturer
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Alternator brand
Leroysomer
Alternator model
LSA52.3L9
Control system
AREP
A.V.R.
Included
Voltage regulation
±1.0%
Insulation system
Class H
Protection
IP23
Rated power factor
0.8
Winding pitch
Two thirds
Winding leads
6
Frequency (Hz)
50
Voltage (V)
400
Phase
3
Output ratings (kVA/kW)
----------------Cont.H-40°C
2360/1888
----------------Standby-27°C
2600/2080
THF
<2%
TIF
<50
Max. overspeed (Rev/Min)
2250
Bearing
Single

Supply Scope

• Engine include air, fuel, oil filters, starting motor and charge alternator etc.
• Brushless AC alternator, single bearing, flange connection, with AVR
• Radiator with engine driven fan mounted on skid
• Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
• Anti-vibration pads between engine/alternator and base frame
• Circuit breaker 3P as standard, 4P optional
• Auto control panel
• Start battery with connecting cable and floating battery charger
• Flexbile pipe, exhaust elbow, industrial silencer etc.
• Standard tools kit
• Electric drawing, test report ,operation & maintaince manual of generator etc.
•Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc

Product Show

Big Power UK Perkins Diesel Generator Set 2250kva 1800kw With Engine 4016-61TRG3

Big Power UK Perkins Diesel Generator Set 2250kva 1800kw With Engine 4016-61TRG3

Big Power UK Perkins Diesel Generator Set 2250kva 1800kw With Engine 4016-61TRG3

Products Details

Big Power UK Perkins Diesel Generator Set 2250kva 1800kw With Engine 4016-61TRG3

1. Assembled by diesel engine and high quality branded alternator.
2. Radiator and fan with safety guard, or heat exchanger.
3. Heavy duty steel base frame with great capacity fuel tank for options.
4. Vibration damping supports between engine/alternator and base frame.
5. Heavy duty industrial type exhaust silencer with flexible bellow.
6. High capacity sealed lead acid battery with battery cable.
7. Intelligent control panel, Deepsea or Comap brand for options.

Big Power UK Perkins Diesel Generator Set 2250kva 1800kw With Engine 4016-61TRG3

1. Air inlet cooling system
2. Stainless door lock
3. Fuel cap lock
4. Tow holes
5. engine
6. radiator
7. insulation and soundproof materials
8. maintenance door
①Speed controller
②mains battery charger
③protection relay
④wiring connection terminals
⑤MCCB using for protection
⑥Deepsea controller
1. Low oil Pressure
2. High water temperature
3. High voltage and low voltage
4. Over current
5. Overspeed
6. Volt adjuster and frequency adjuster.
7. Emergency stop
8. Low fuel alarm and shutdown
9. Low coolant alarm and shutdown
Our factory

AI POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switchgear.
